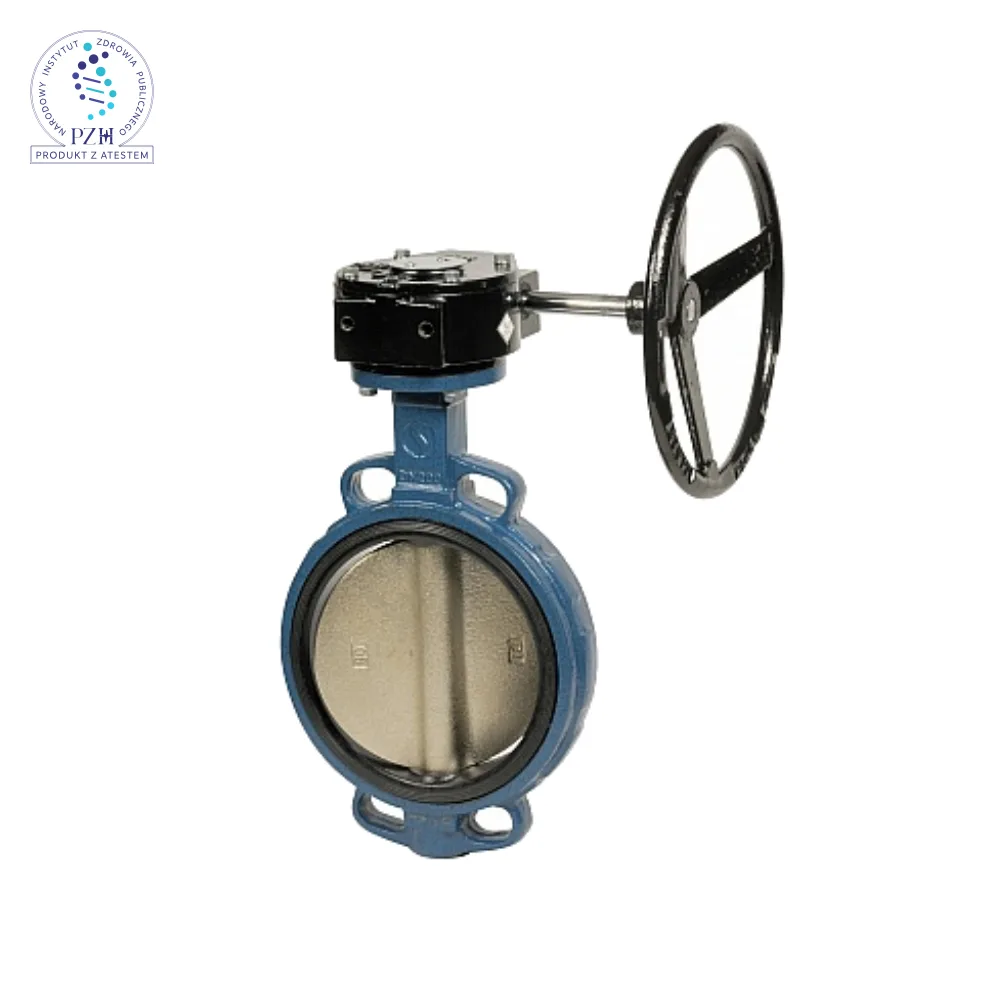

Wafer butterfly valve with manual gear box. For water, heating and industrial installations. Body: gray cast iron GJL-250 (from DN 700 body made of GJS-400 ductile iron), disc: GJS-400 ductile iron, disc seal – EPDM, spindle – AISI 420 steel (up to DN 300), AISI 431 (from DN 350).
Wafer butterfly valve with gear box
CODE: J9G.1220
| DN | Netto price (EUR): | Availability |
|---|---|---|
| 100 | 221,63 | on order |
| 125 | 287,44 | on order |
| 150 | 318,60 | on order |
| 200 | 430,00 | on order |
| 250 | 652,09 | on order |
| 300 | 814,88 | on order |
| 350 | 1 345,12 | on order |
| 400 | 1 948,37 | on order |
| 450 | 2 643,26 | on order |
| 500 | 4 514,19 | on order |
| 600 | 6 246,98 | on order |
| 700 | 16 019,30 | on order |
| 800 | 20 383,72 | on order |
| 900 | 27 281,16 | on order |
| 1000 | 36 934,88 | on order |
MAIN FEATURES:
Nominal pressure= 1.6 MPa (for DN 100÷300), 1.0 MPa (for DN 350÷1000),
Temperature range= -10°C ÷ +110°C
For PN 10/16 flanges
Meets requirements of Pressure Equipment Directive – 2014/68/EU
PZH certified for potable water
