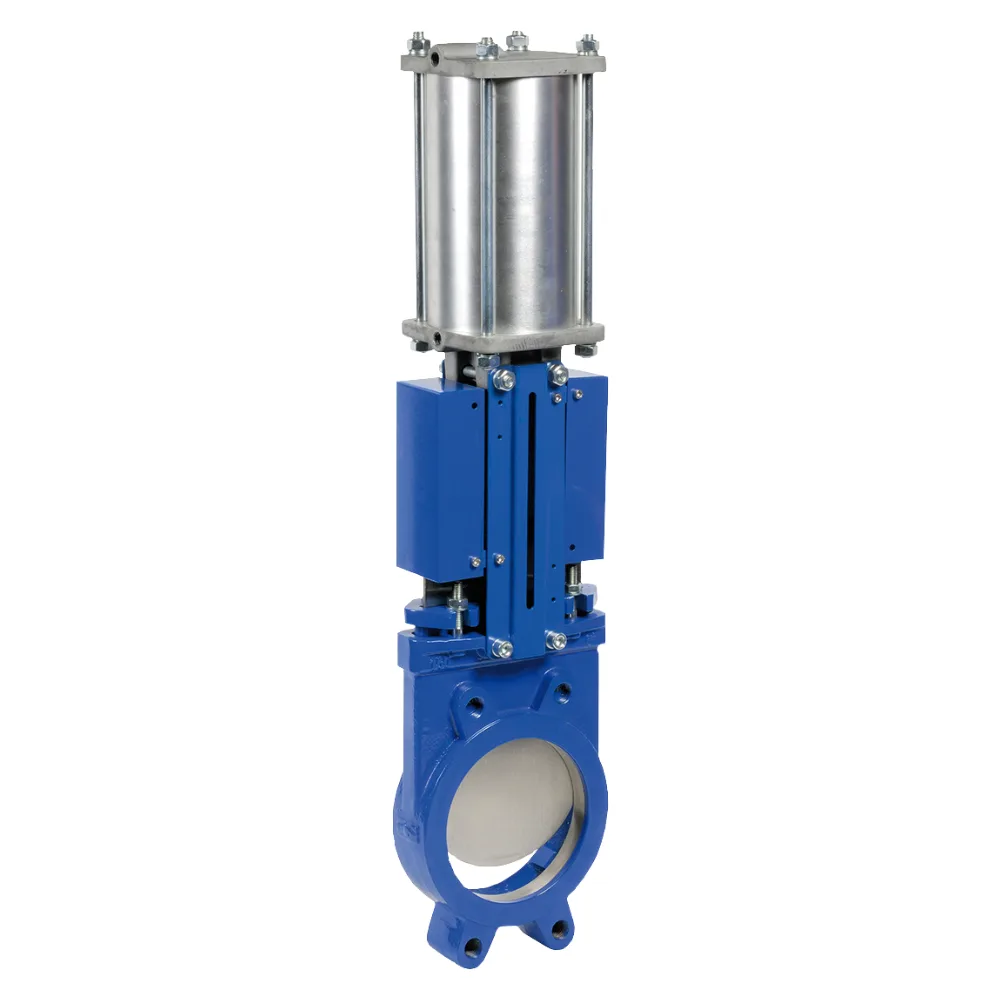

Unidirectional wafer knife gate valve with pneumatic actuator

CODE: P440TH

It is used to regulate or close the flow of high-density working media, emulsions and powdered and granulated working media. It is used in sewage networks, sewage treatment plants and for industrial purposes. Body: gray cast iron GJL-250, wedge: AISI 304 stainless steel, seals: NBR.

DN Working pressure Netto price (EUR): Availability
50 1,0 MPa    718,37 on order
65 1,0 MPa    757,91 on order
80 1,0 MPa    765,12 on order
100 1,0 MPa    920,93 on order
125 1,0 MPa  1 264,65 on order
150 1,0 MPa  1 274,65 on order
200 1,0 MPa  2 061,63 on order
250 0,8 MPa  2 904,42 on order
300 0,6 MPa  3 471,40 on order
350 0,4 MPa  6 557,91 on order
400 0,4 MPa  7 737,44 on order

MAIN FEATURES:

Pressure according to the table above

Temperature range= -10°C ÷ +80°C

ΔPmax = 0.7 MPa

Bidirectional pneumatic actuator

Control pressure of the air 0.5 MPa ÷ 0.7 MPa

For flanged ends PN10 (threaded flange holes)

Meets requirements of Pressure Equipment Directive – 2014/68/EU
