The valves maintain a constant, set temperature of mixed water, regardless of changes in the temperature coming out from the heater or tank. The valve is available in two variants of the setting range – code: 520-3048 (temperature range: +30ºC ÷ +48ºC) and code: 520-4060 (+40ºC ÷ +60ºC). Body: chrome-plated brass CW 617N, closing element: brass CW 614N, spring: stainless steel, seals: EPDM.

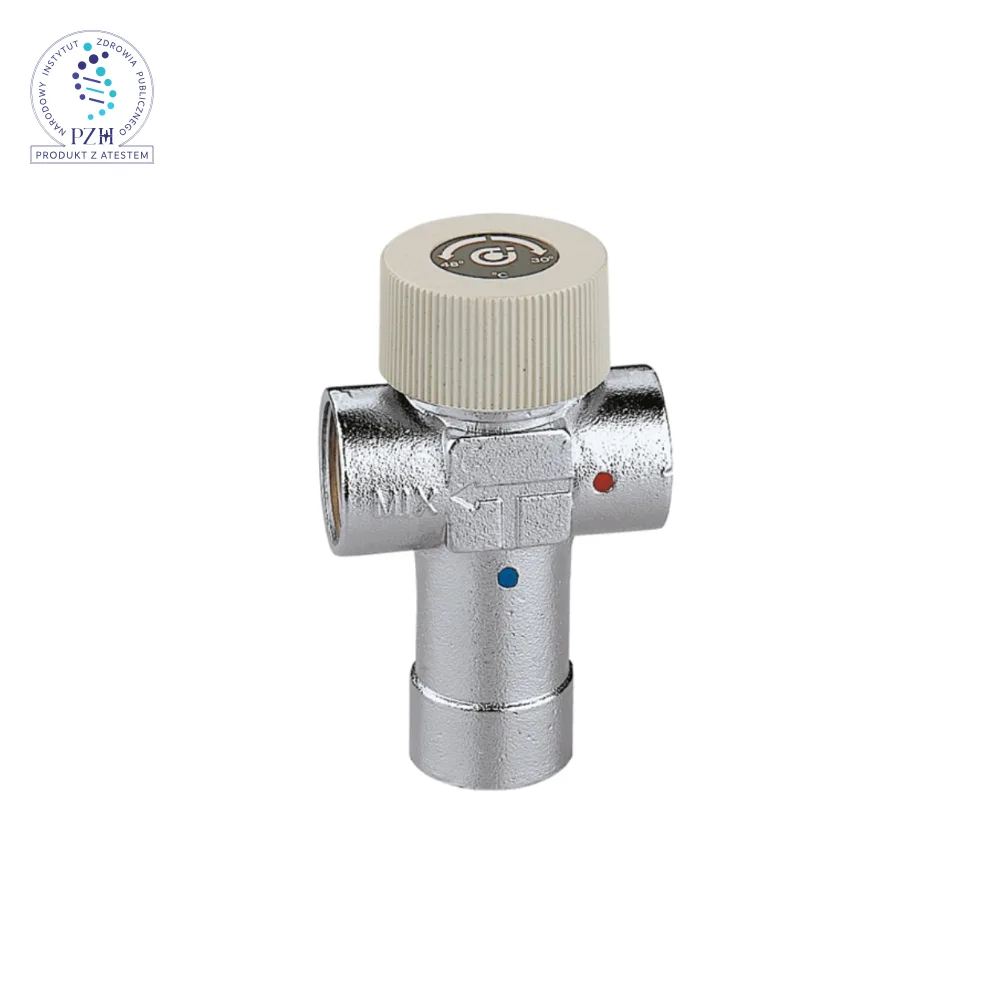

Thermostatic mixing valve
CODE: 520
| DN | Setting range [°C] | Netto price (EUR): | Availability |
|---|---|---|---|
| 1/2" | 30 ÷ 48 | 120,23 | on order |
| 3/4" | 30 ÷ 48 | 148,37 | on order |
| 1" | 30 ÷ 48 | 166,74 | on order |
| 1/2" | 40 ÷ 60 | 132,79 | on order |
| 3/4" | 40 ÷ 60 | 153,72 | on order |
| 1" | 40 ÷ 60 | 166,74 | on order |
MAIN FEATURES:
Nominal pressure= 1.0 MPa
Maximum temperature= +90°C
Minimum flow rate 5 l/min
Maximum inlet pressure ratio (hot/cold or cold/hot) 1,1:1
Working medium: water
PZH certified for potable water
F threaded ends
