Pressed fitting for multilayer pipes used to make non-detachable connections in water, heating and other installations in which a non-aggressive working medium flows. Body: brass; sleeve: stainless steel; o-ring: EPDM.

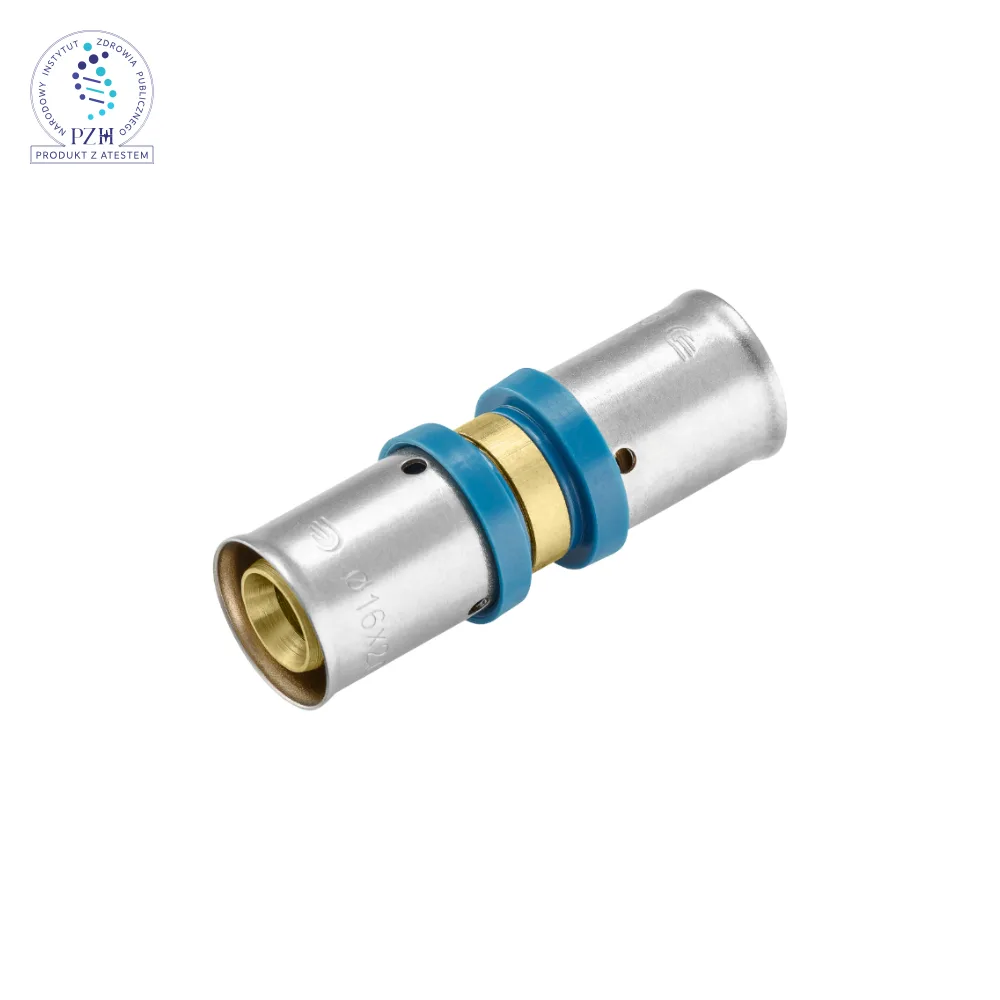

Press double union
CODE: X103
| DN | Netto price (EUR): | Availability |
|---|---|---|
| 16x16 | 1,44 | standard |
| 20x20 | 2,12 | standard |
| 25x25 | 3,84 | standard |
| 32x32 | 6,28 | standard |
| 20x16 | 1,86 | standard |
| 25x16 | 2,95 | standard |
| 25x20 | 3,19 | standard |
| 32x20 | 5,00 | standard |
| 32x25 | 5,74 | standard |
MAIN FEATURES:
Nominal pressure= 1.0 MPa
Maximum temperature= +95°C
Applicable pressing jaw type: „”U””
Works with PEX/AL/PEX and PERT/AL/PERT multilayer pipes
Meets requirements of EN 1254-8:2013-04 standard
PZH certified for potable water
