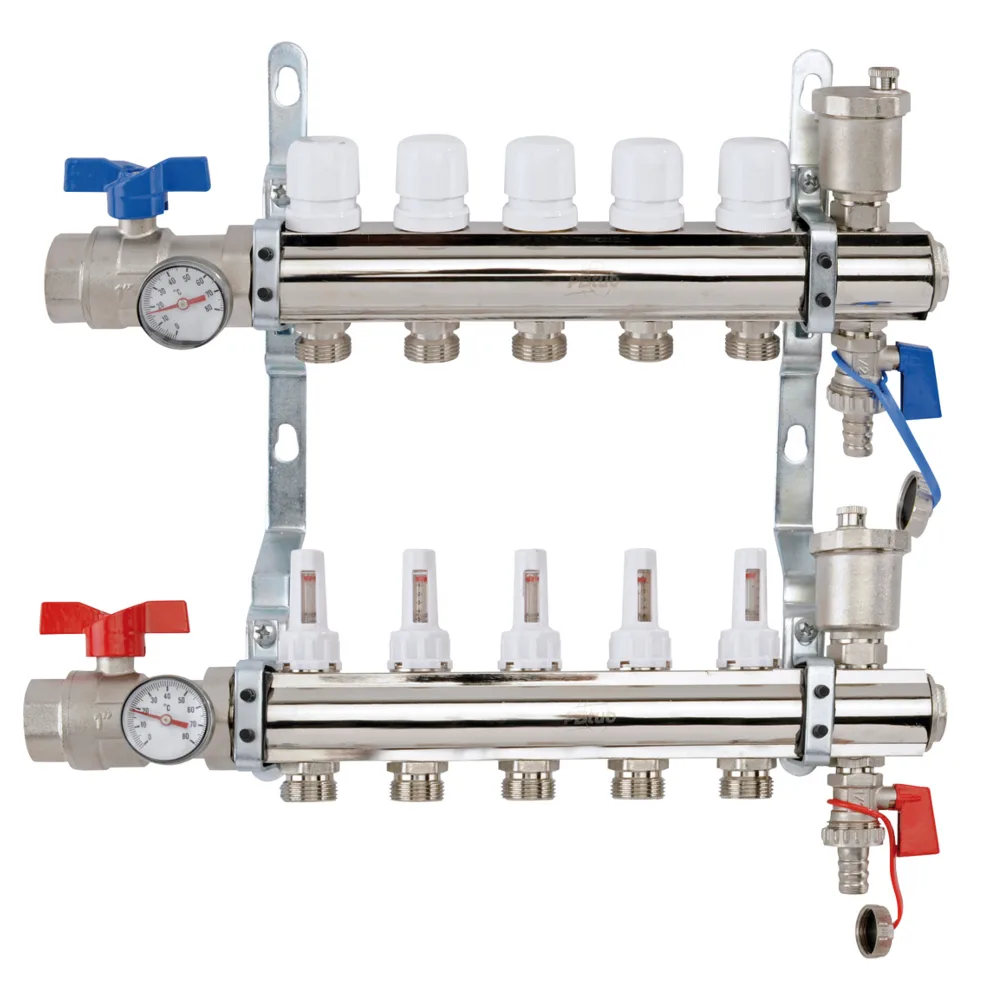

Manifold equipped with a wall mounting brackets, 2pcs of ball valves with 2-piece unions and thermometer, adjustable flow meters (range: 1-5 l/min), thermostatic valves, automatic air vents with a non-return valve, drain valves, M 3/4″ branch connections (Eurocono). Body: CW 617N brass.
Manifold ø1″
CODE: X6600
| DN | Netto price (EUR): | Availability |
|---|---|---|
| 2+1 | 332,33 | on order |
| 3+1 | 381,86 | on order |
| 4+1 | 433,26 | on order |
| 5+1 | 480,47 | standard |
| 6+1 | 544,88 | standard |
| 7+1 | 603,02 | on order |
| 8+1 | 694,42 | on order |
| 9+1 | 730,70 | on order |
| 10+1 | 792,33 | on order |
MAIN FEATURES:
Temperature range= +5°C ÷ +65°C
Nominal pressure= 0,6 MPa
Branch ends M 3/4″ threaded (with Eurocono seat)
Main ends F 1” threaded ISO 228/1
