Flexible and extensible water connection hose is an alternative to rigid connections. Applications: sanitary installations, radiator connections, water connections for boilers and water heaters, water tanks and reservoirs, etc. Hose: AISI304L stainless steel, swivel nut: brass, gasket: fiber.

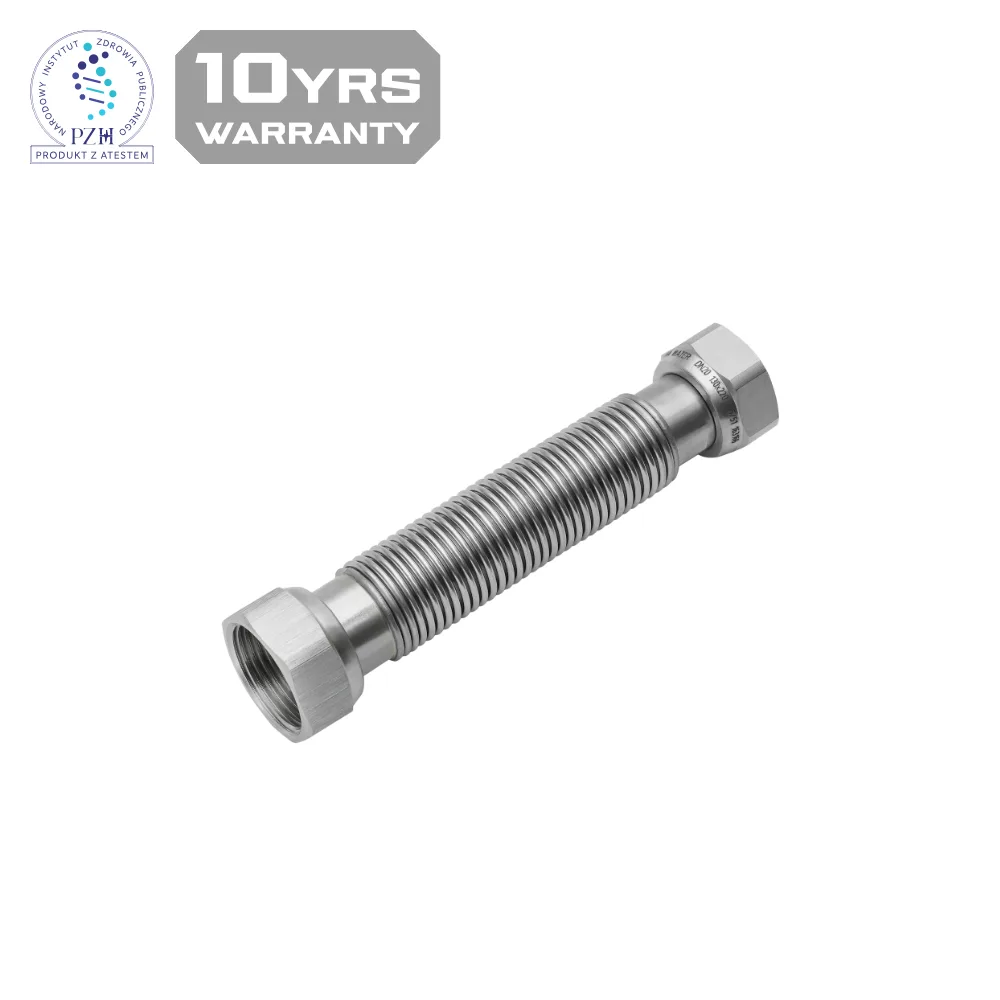

Flexible and extensible connection hose for sanitary and HVAC installations – Flexo-ExDrop
CODE: FPW2
| DN | Length range [mm] | Netto price (EUR): | Availability |
|---|---|---|---|
| 1/2" | 90-140 | 8,40 | standard |
| 1/2" | 130-220 | 9,02 | standard |
| 1/2" | 220-420 | 10,40 | standard |
| 1/2" | 300-600 | 11,98 | standard |
| 1/2" | 500-1000 | 14,51 | standard |
| 1/2" | 750-1500 | 17,26 | standard |
| 1/2" | 1000-2000 | 20,51 | standard |
| 1/2"x3/4" | 90-140 | 10,14 | standard |
| 1/2"x3/4" | 130-220 | 10,79 | standard |
| 1/2"x3/4" | 220-420 | 12,44 | standard |
| 1/2"x3/4" | 300-600 | 14,16 | standard |
| 3/4" | 90-140 | 11,47 | standard |
| 3/4" | 130-220 | 12,21 | standard |
| 3/4" | 220-420 | 13,95 | standard |
| 3/4" | 300-600 | 16,00 | standard |
| 3/4" | 500-1000 | 19,53 | standard |
| 3/4" | 750-1500 | 25,81 | standard |
| 3/4" | 1000-2000 | 31,86 | standard |
| 1" | 130-220 | 21,86 | standard |
| 1" | 220-420 | 24,88 | standard |
| 1" | 300-600 | 27,91 | standard |
| 1" | 500-1000 | 33,95 | standard |
| 1"1/4 | 130-220 | 66,98 | standard |
| 1"1/4 | 220-420 | 74,19 | standard |
| 1"1/4 | 250-500 | 76,51 | standard |
| 1"1/4 | 300-600 | 80,23 | standard |
| 1"1/4 | 500-1000 | 96,51 | standard |
| 1"1/2 | 130-220 | 105,12 | on order |
| 1"1/2 | 220-420 | 113,72 | on order |
| 1"1/2 | 250-500 | 116,51 | on order |
| 1"1/2 | 300-600 | 122,33 | on order |
| 1"1/2 | 500-1000 | 146,74 | on order |
| 2" | 130-220 | 148,84 | on order |
| 2" | 220-420 | 158,14 | on order |
| 2" | 500-1000 | 160,23 | on order |
To download:
Conform EN ISO 10380 standard
Made in UE
10 years warranty
PZH certified for potable water
MAIN FEATURES:
Pmax = 0,8 MPa (1/2″), Pmax = 0,7 MPa (3/4″), Pmax = 0,6 MPa (1″), Pmax = 0,35 MPa (1″1/4), Pmax = 0,25 MPa (1″1/2), Pmax = 0,2 MPa (2″)
Temperature range= -10°C ÷ +100°C
Ends F threaded/F threaded with swivel nut
Working medium: water, glycol, oil
