Flexible and extensible hose for connecting all permanently installed gas home appliances to the gas installation. Hose: AISI 304L austenitic steinless steel, outer coating – polyolefin, ends: AISI 304 stainless steel, gasket: NBR.

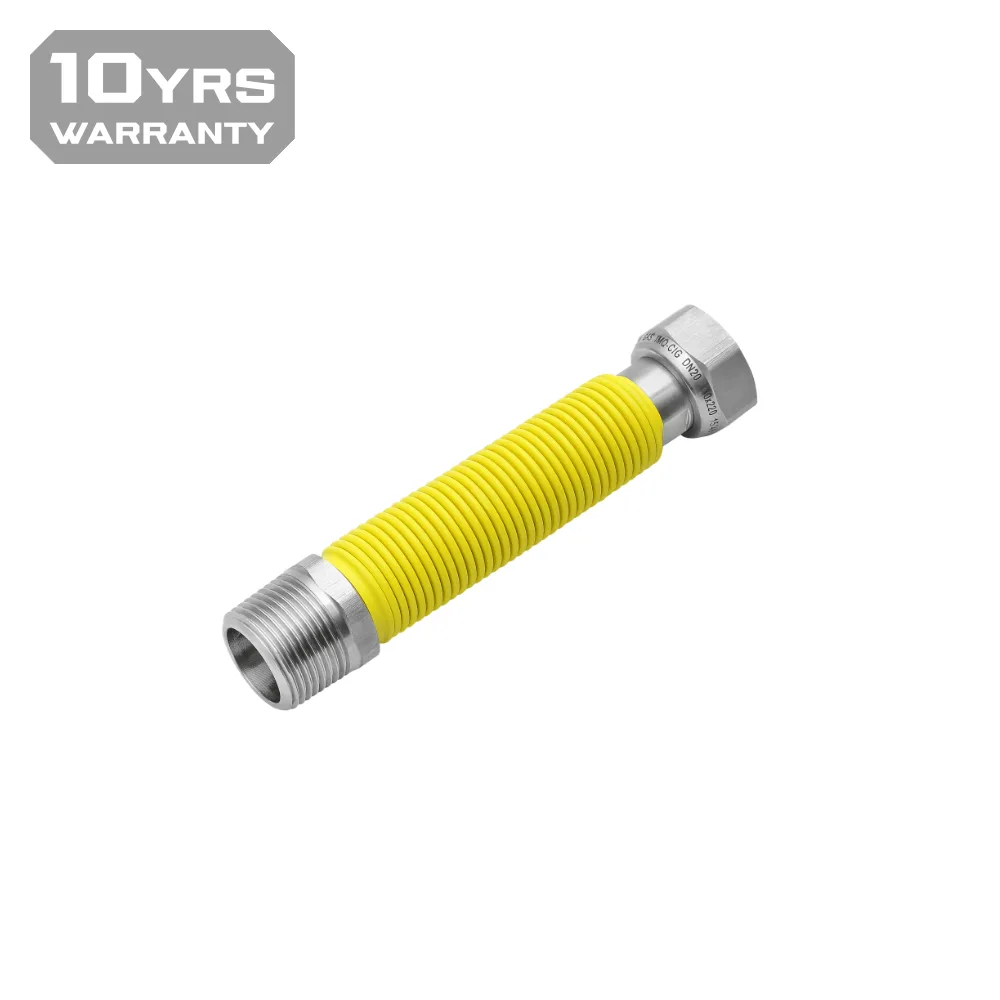

Flexible and extensible connection hose for gas with M/F ends – Flexo-ExGas
CODE: FPG5
| DN | Length range [mm] | Netto price (EUR): | Availability |
|---|---|---|---|
| 1/2" | 90-140 | 9,65 | standard |
| 1/2" | 130-220 | 10,37 | standard |
| 1/2" | 220-420 | 12,19 | standard |
| 1/2" | 250-500 | 13,26 | standard |
| 1/2" | 300-600 | 14,70 | standard |
| 1/2" | 500-1000 | 18,86 | standard |
| 1/2" | 750-1500 | 24,35 | standard |
| 1/2" | 1000-2000 | 30,09 | standard |
| 1/2"x3/4" | 90-140 | 11,35 | standard |
| 1/2"x3/4" | 130-220 | 12,02 | standard |
| 1/2"x3/4" | 220-420 | 13,86 | standard |
| 1/2"x3/4" | 250-500 | 15,40 | standard |
| 1/2"x3/4" | 300-600 | 16,86 | standard |
| 3/4" | 90-140 | 13,35 | standard |
| 3/4" | 130-220 | 14,30 | standard |
| 3/4" | 220-420 | 15,93 | standard |
| 3/4" | 250-500 | 17,28 | standard |
| 3/4" | 300-600 | 18,95 | standard |
| 3/4" | 500-1000 | 24,65 | standard |
| 3/4" | 750-1500 | 32,09 | standard |
| 3/4" | 1000-2000 | 37,21 | standard |
| 1" | 130-220 | 26,05 | standard |
| 1" | 220-420 | 30,00 | standard |
| 1" | 300-600 | 34,19 | standard |
| 1" | 500-1000 | 44,42 | standard |
| 1" | 750-1500 | 57,67 | standard |
| 1" | 1000-2000 | 67,91 | standard |
To download:
Conform UNI 11353 standard
Made in EU
10 years warranty
MAIN FEATURES:
Nominal pressure = 0,05 MPa
Ambient temperature range = -20°C ÷ +120°C
Ends made of stainless steel M threaded / F threaded with swivel nut
Working medium: high-methane natural gas, nitrogen-rich natural gas, propane, propane-butane
