It is used to reduce the supply pressure in the water installation. It is equipped with connections for a pressure gauge. Pressure gauge included. It can be used in residential construction, water supply networks, agriculture and for industrial purposes. Body made of gray cast iron GJL-250, internal parts made of bronze and brass, seals: NBR rubber.

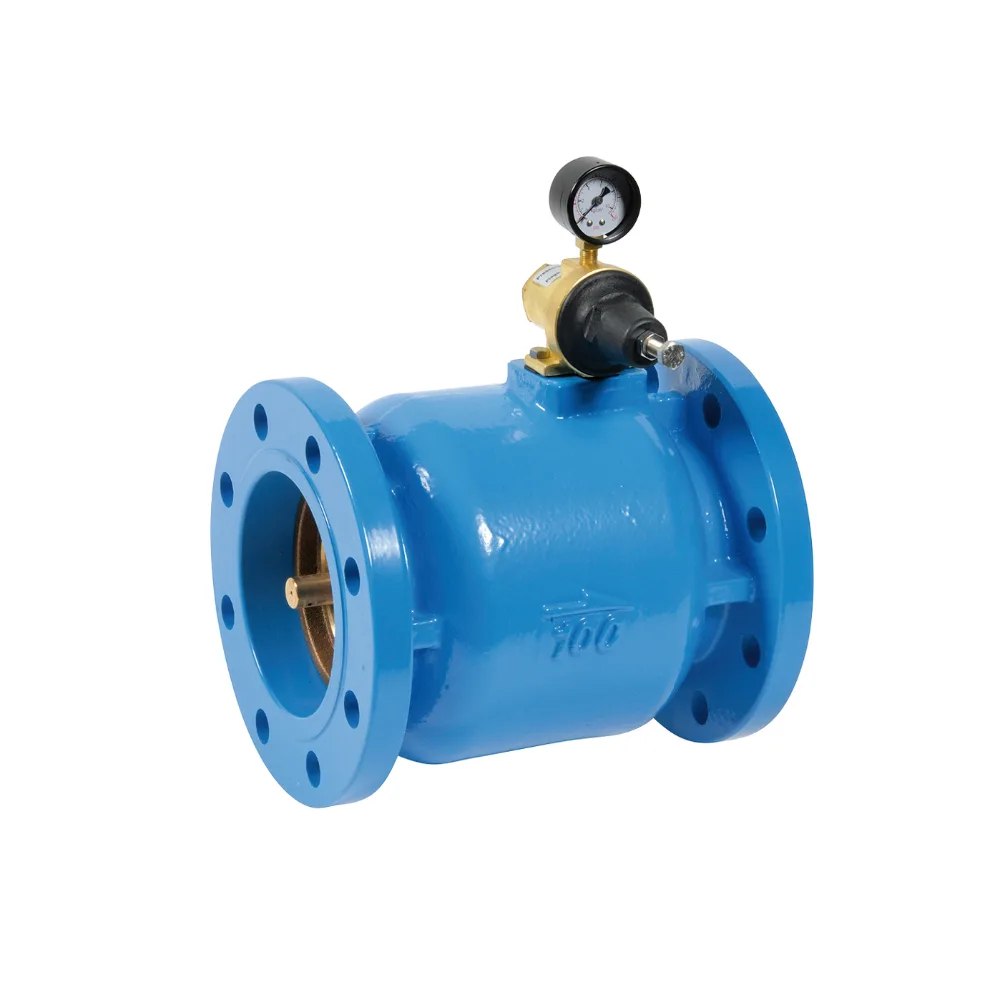

Flanged pressure reducer
CODE: 235/236
| DN | Netto price (EUR): | Availability |
|---|---|---|
| 50 | 2 241,86 | on order |
| 65 | 2 462,79 | on order |
| 80 | 3 014,65 | on order |
| 100 | 3 938,60 | on order |
| 125 | 5 790,47 | on order |
| 150 | 7 751,86 | on order |
| 200 | 17 513,95 | on order |
| 250 | 35 051,86 | on order |
| 300 | 39 213,02 | on order |
MAIN FEATURES:
Nominal pressure= 1,6 MPa
Pressure reduction range= 0,1 MPa ÷ 0,7 MPa (code 235), 0,4 MPa ÷ 1,2 MPa (code 236)
Temperature range= -10°C ÷ +80°C
Pressure gauge included
Ends flanged PN16
Pressure gauge connections F threaded ISO 7/1
Meets requirements of the Pressure Equipment Directive 2014/68/EU
