It’s a membrane valve that reduces and stabilizes the output pressure – regardless of supply pressure fluctuations. Body made of GJS-400 ductile iron, closing disc, spring and stem guide made of AISI 304 stainless steel, membrane made of EPDM.

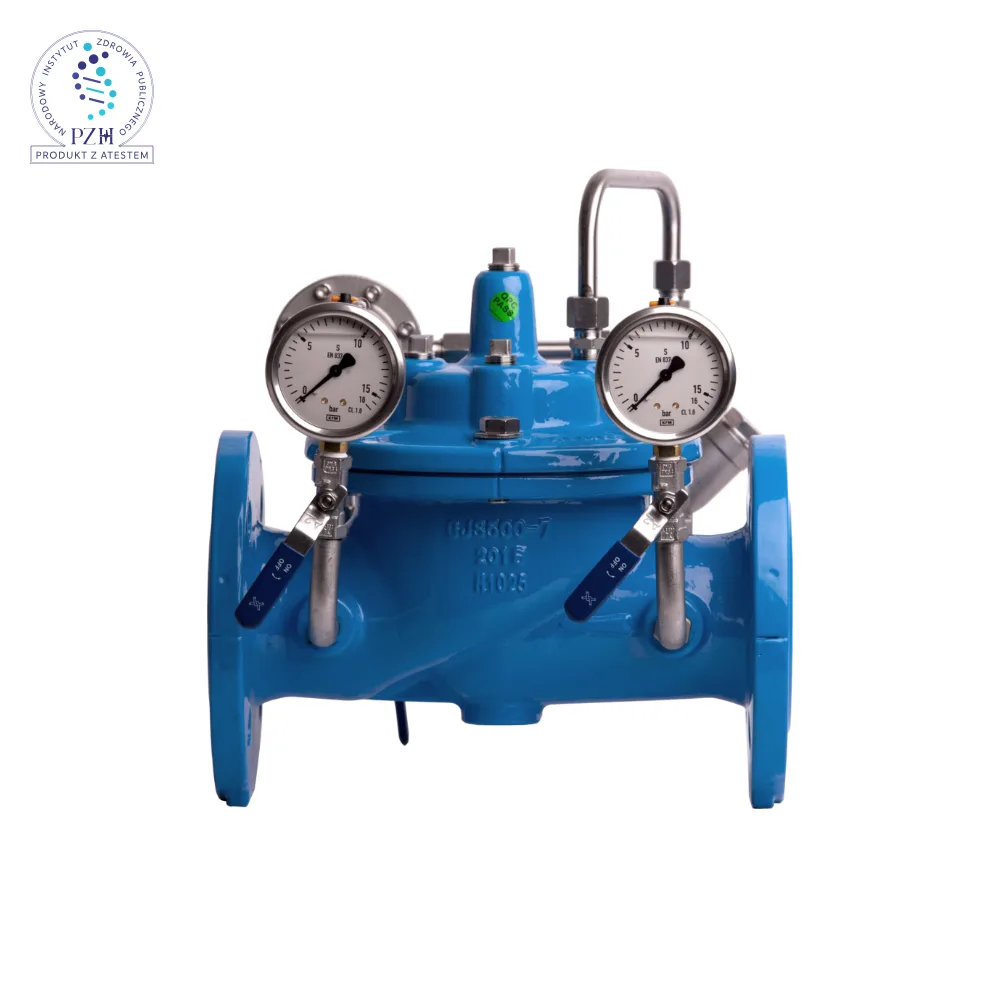

Flanged pressure reducer and stabilizer
CODE: 12.100
| DN | Netto price (EUR): | Availability |
|---|---|---|
| 50 | 2 263,95 | on order |
| 65 | 2 408,14 | on order |
| 80 | 2 810,93 | on order |
| 100 | 3 540,23 | on order |
| 150 | 4 937,91 | on order |
MAIN FEATURES:
Nominal pressure= 2,5 MPa
Pressure reduction range= 0,1 MPa ÷ 1,1 MPa
Temperature range= +2°C ÷ +80°C
Face-to-face lenght DIN3202-F1
Ends flanged PN10, PN16, PN25
Conform EN 1074 standard
PZH certified for potable water
