Non-return valve is used to prevent the working medium from flowing back in the pipeline. Body: gray cast iron GJL-250, plug: AISI 303 stainless steel, plug seals: EPDM, spring: AISI 303 stainless steel.

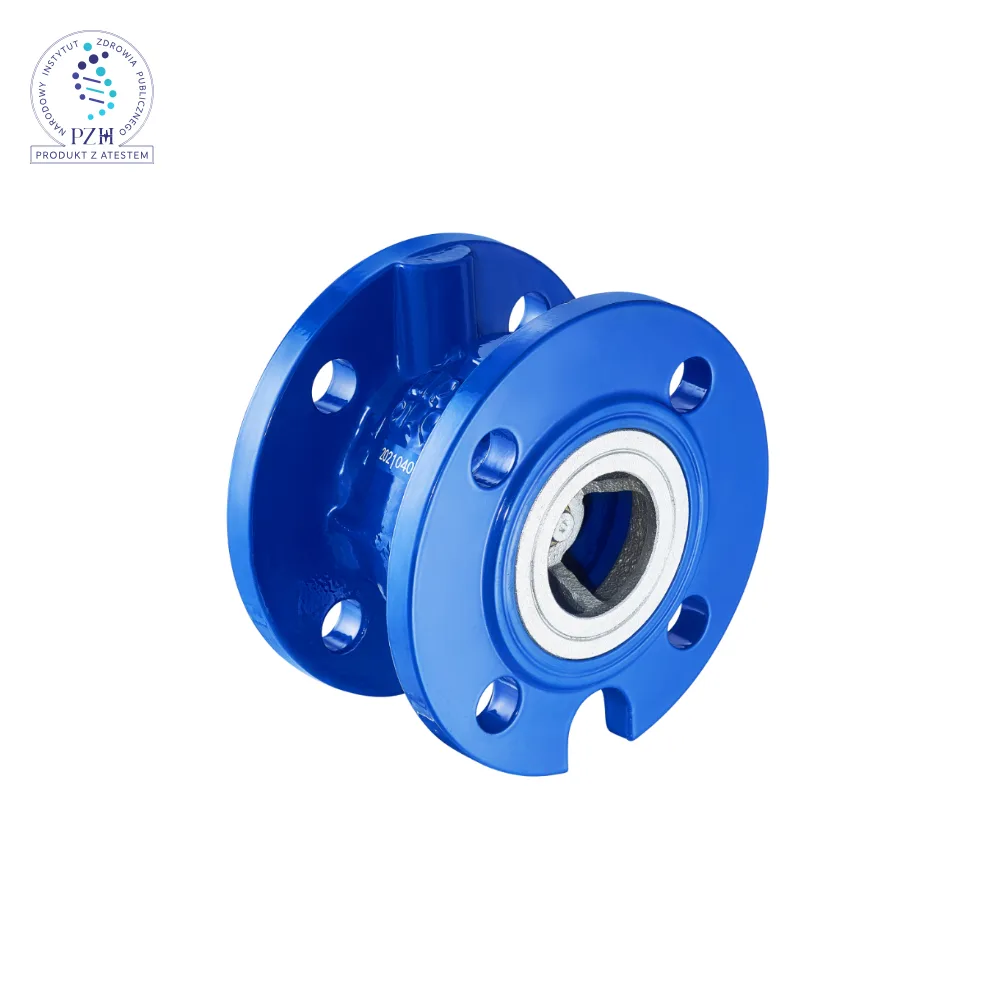

Flanged check valve spring loaded
CODE: F5.000
| DN | Netto price (EUR): | Availability |
|---|---|---|
| 50 | 153,95 | standard |
| 65 | 211,63 | standard |
| 80 | 251,16 | standard |
| 100 | 317,21 | standard |
| 125 | 498,60 | on order |
| 150 | 688,37 | on order |
| 200 | 1 110,23 | on order |
| 250 | 1 560,23 | on order |
| 300 | 2 117,91 | on order |
MAIN FEATURES:
Nominal pressure= 1,6 MPa
Temperature range= -10°C ÷ +110°C
Ends flanged PN16
Meets requirements of the Pressure Equipment Directive 2014/68/EU
VITON seals available on request
PZH certified for potable water
