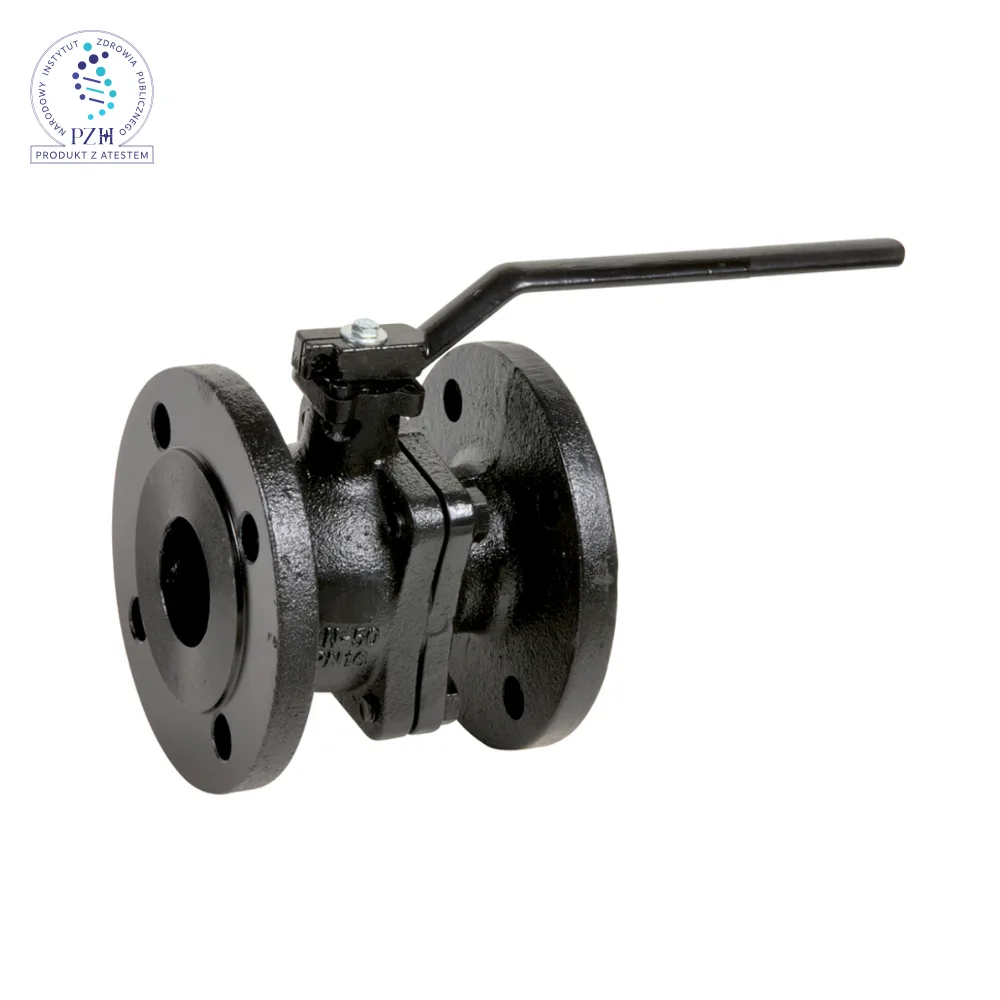

Flanged ball valve (F4 built-in), full bore. For use in water, heating and cooling installations. Body: gray cast iron GJL-250, ball: stainless steel, ball seal: PTFE.
Flanged ball valve – F4 body length
CODE: 507
| DN | Netto price (EUR): | Availability |
|---|---|---|
| 15 | 147,21 | on order |
| 20 | 170,00 | on order |
| 25 | 193,02 | on order |
| 32 | 251,86 | on order |
| 40 | 287,67 | on order |
| 50 | 343,26 | on order |
| 65 | 490,47 | on order |
| 80 | 621,40 | on order |
| 100 | 892,79 | on order |
| 125 | 1 393,02 | on order |
| 150 | 2 280,47 | on order |
| 200 | 2 960,93 | on order |
MAIN FEATURES:
Nominal pressure= 1,6 MPa
Temperature range= -10°C ÷ +200°C
Ends flanged PN16 with threaded holes
Meets requirements of the Pressure Equipment Directive 2014/68/EU
PZH certified for potable water
