Threaded fitting for making detachable connections in water, heating and other installations in which a non-aggressive working medium flows. Body: brass (optionally – nickel-plated).

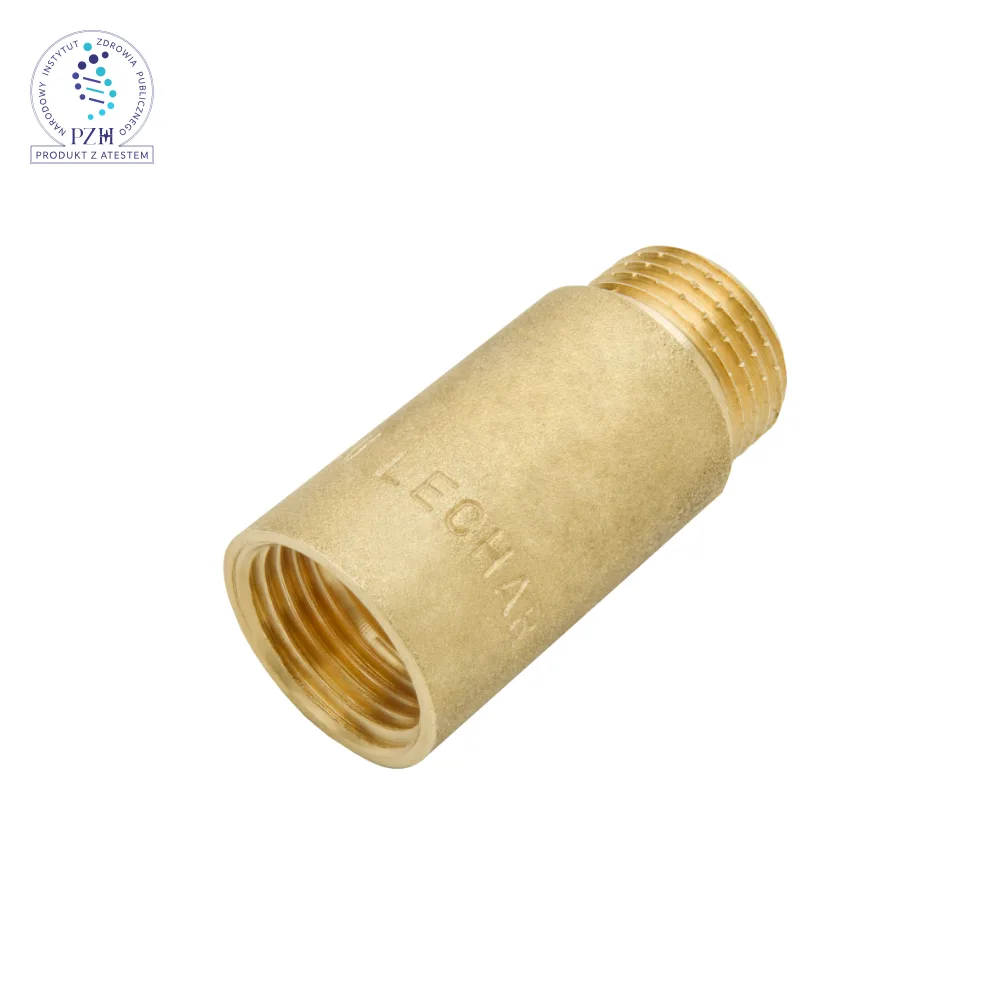

Extension M/F
CODE: 292
| DN | Length [mm] | Netto price (EUR): | Availability |
|---|---|---|---|
| 1/2" | 10 | 1,03 | standard |
| 1/2" | 15 | 1,47 | standard |
| 1/2" | 20 | 1,80 | standard |
| 1/2" | 25 | 2,33 | standard |
| 1/2" | 30 | 2,58 | standard |
| 1/2" | 40 | 3,46 | standard |
| 1/2" | 50 | 4,19 | standard |
| 3/4" | 10 | 2,19 | standard |
| 3/4" | 15 | 2,61 | standard |
| 3/4" | 20 | 3,17 | standard |
| 3/4" | 25 | 3,67 | standard |
| 3/4" | 30 | 4,27 | standard |
| 3/4" | 40 | 5,53 | standard |
| 3/4" | 50 | 6,14 | standard |
| 1" | 10 | 3,17 | standard |
| 1" | 15 | 3,73 | standard |
| 1" | 20 | 4,45 | standard |
| 1" | 25 | 5,37 | standard |
| 1" | 30 | 6,27 | standard |
| 1" | 40 | 7,60 | standard |
| 1" | 50 | 9,87 | standard |
MAIN FEATURES:
Nominal pressure= 1,0 MPa
Temperature range= 0°C ÷ +95°C
Knurled external thread
Ends threaded ISO 228/1
Conform EN 1254-4 standard
PZH certified for potable water
