Corrugated flexible pipe Flexo-Tube – for solar and HVAC installations

CODE: FP02

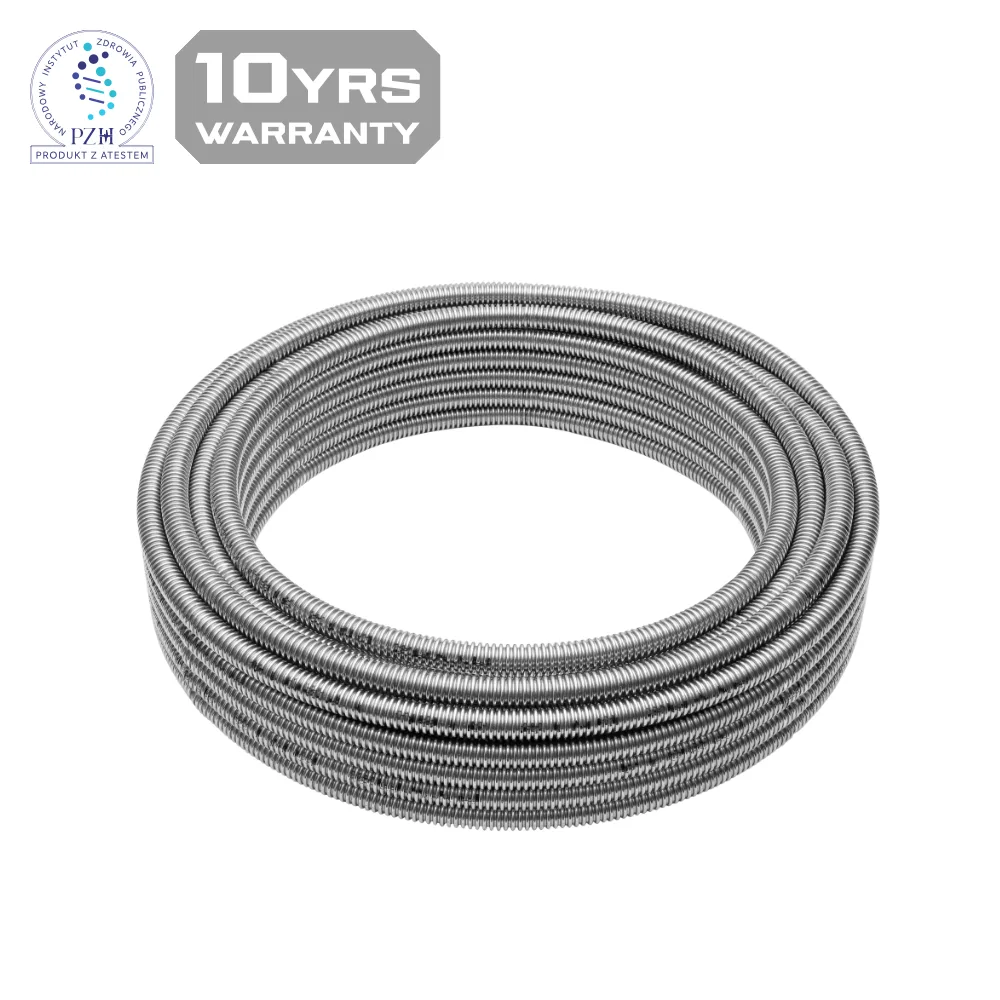

Flexo-Tube is a corrugated, flexible pipe made of AISI 316L austenitic stainless steel. These products are intended for connecting home devices to heating, water (potable water inclusive) and solar installations.

DN Coil length [m] Netto price (EUR): Availability
12 mm 5   5,72 standard
12 mm 25   5,28 standard
12 mm 50   5,28 standard
16 mm 5   6,33 standard
16 mm 25   5,58 standard
16 mm 50   5,58 standard
20 mm 5   8,65 standard
20 mm 25   8,37 standard
20 mm 50   8,37 standard
25 mm 5  13,12 standard
25 mm 25  11,60 standard
25 mm 50  11,60 standard
32 mm 25  16,60 standard
32 mm 50  16,60 standard
40 mm 25  38,51 on order
40 mm 50  38,51 on order
50 mm 25  59,26 on order
50 mm 50  59,26 on order

To download:

The prices given above refer to the net price for 1 m of pipe.

Conform EN ISO 10380 standard

Made in EU

10 years warranty

PZH certified for potable water

MAIN FEATURES:

Pmax = 1,6 MPa (DN12), Pmax = 1,0 MPa (DN16, DN20), Pmax = 0,6 MPa (DN25, DN32), Pmax = 0,25 MPa (DN40), Pmax = 0,2 MPa (DN50)

Tmax = +250°C

Working medium: water, glycol
