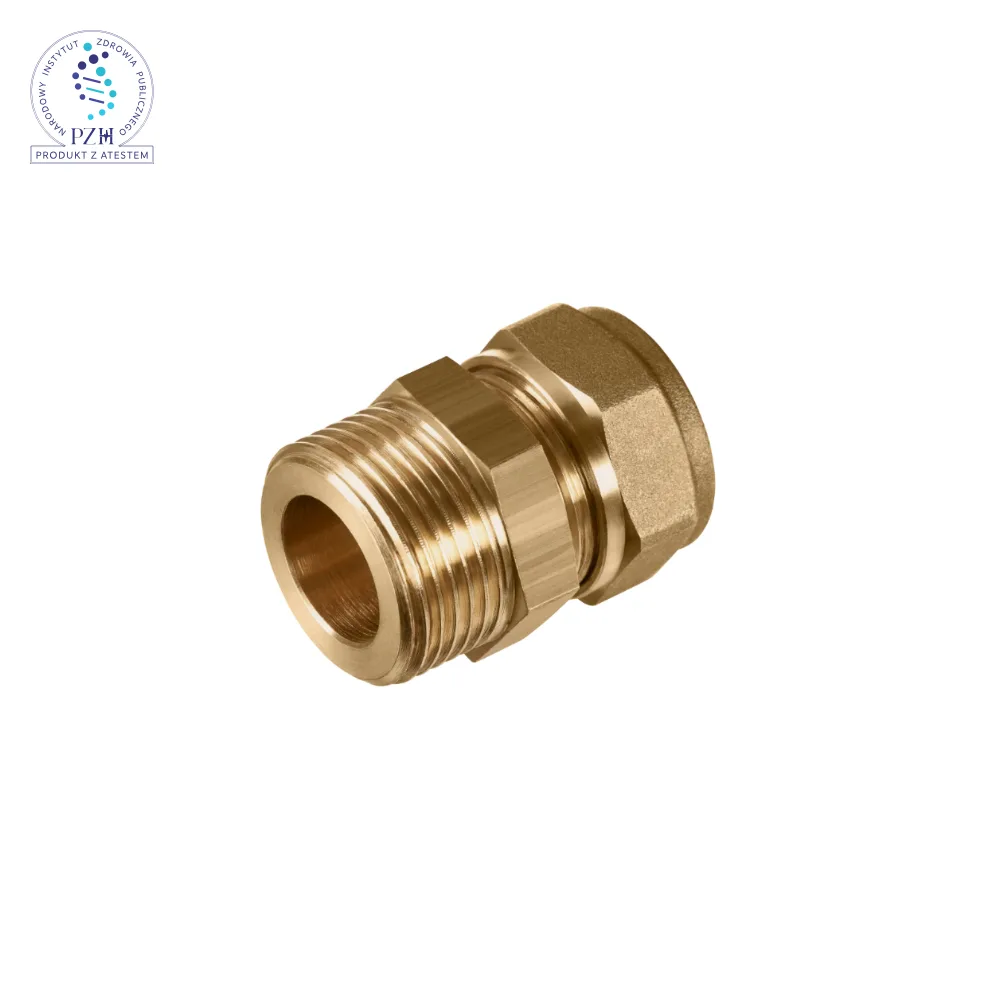

Compression fitting with a full gripp ring for copper pipes. To make detachable connections in water, heating and other installations in which a non-aggressive working medium flows. Due to its high operating temperature, it is suitable for solar installations. On the side with the threaded end, it has a wide (min. 3.0 mm wall thickness) flat face. This allows a direct connection of flexible, corrugated hoses or any other connection with a flat gasket. Body, nut and gripp ring: CW 617N brass.
Compression straight fitting with threaded M end (flat head)
CODE: 271FD
| DN | Netto price (EUR): | Availability |
|---|---|---|
| 1/2"x15 | 6,05 | on order |
| 1/2"x18 | 9,37 | on order |
| 3/4"x15 | 9,09 | standard |
| 3/4"x18 | 9,79 | standard |
| 3/4"x22 | 10,72 | standard |
| 1"x22 | 13,42 | on order |
MAIN FEATURES:
Nominal pressure= 3,0 MPa
Tmax = +250°C
End threaded ISO 228/1
Conform PN-EN 1254-2 standard
PZH certified for potable water
