Standard passage ball valve – for water and heating installations. Body: nickel-plated brass, ball: chrome-plated brass, spindle: brass, seals: PTFE, NBR, butterfly: paint coated aluminium.

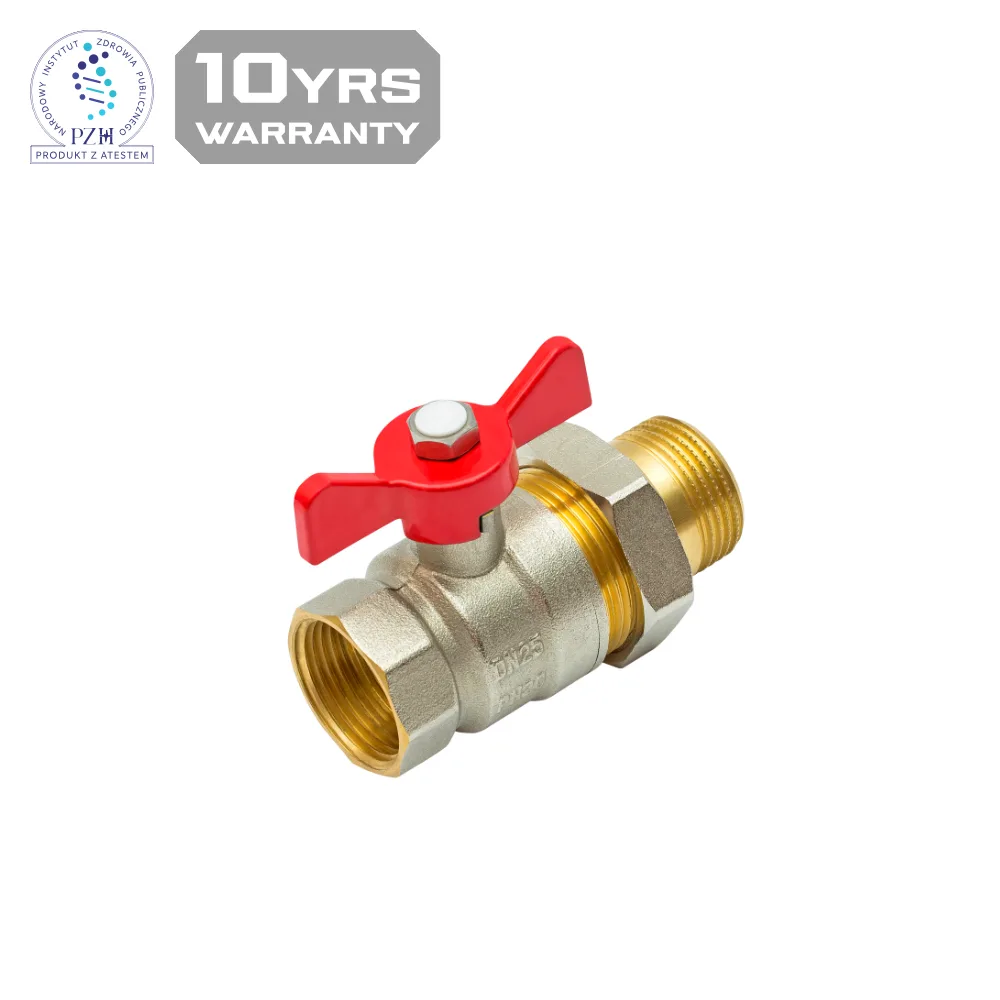

Ball valve M/F with 2-piece union
CODE: 146
| DN | Pmax [MPa] | Netto price (EUR): | Availability |
|---|---|---|---|
| 1/2" | 2,0 | 8,19 | standard |
| 3/4" | 2,0 | 12,02 | standard |
| 1" | 2,0 | 20,21 | standard |
To download:
10 years warranty

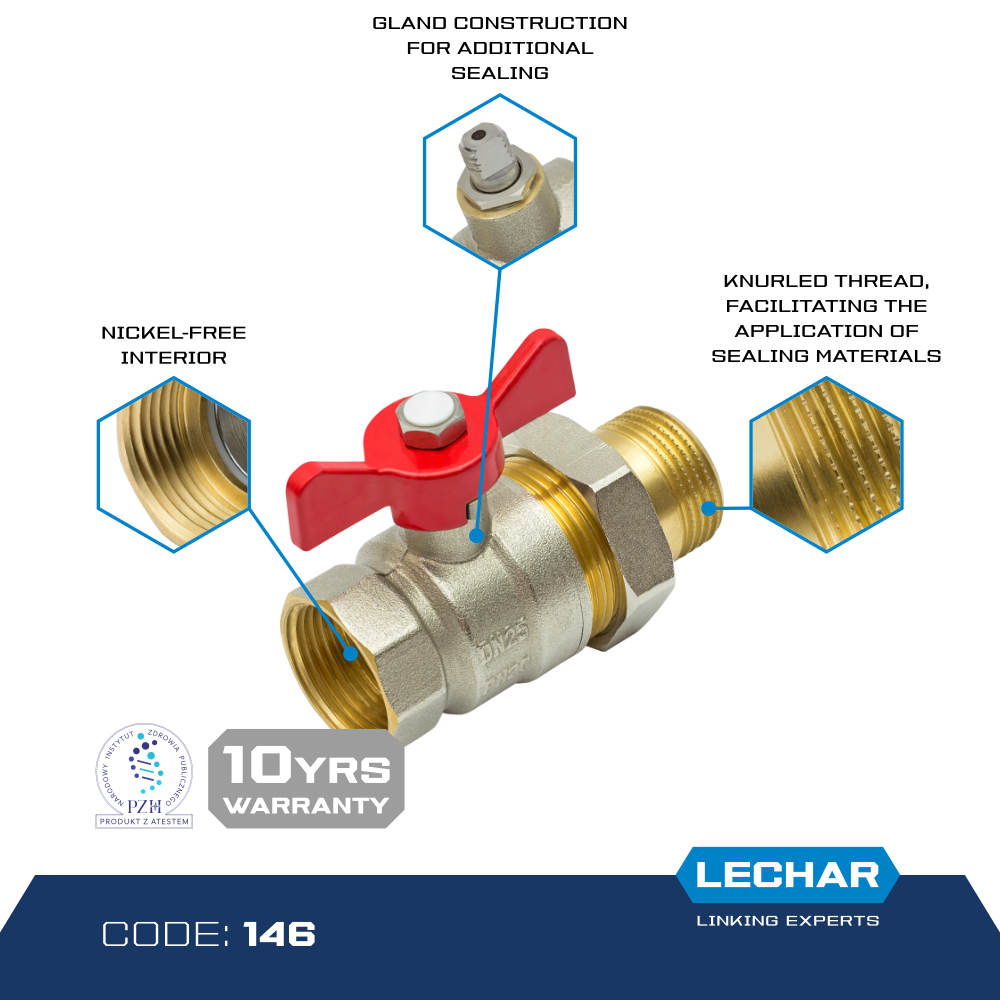

Gland design for additional sealing
Knurled external threads for easy application of sealing materials
Valve interior without nickel coating – ready for potable water
MAIN FEATURES:
Temperature range= 0°C ÷ +120°C
Nominal pressure= 2,0 MPa (1/2″ – 1″)
Ends threaded ISO 228/1
Conform PN-M-75002:2016:10 standard
PZH certified for potable water
