A valve to balance flow in cooling, heating and water installations. It’s a differential pressure control valve that maintains a constant differential pressure regardless of flow rate.

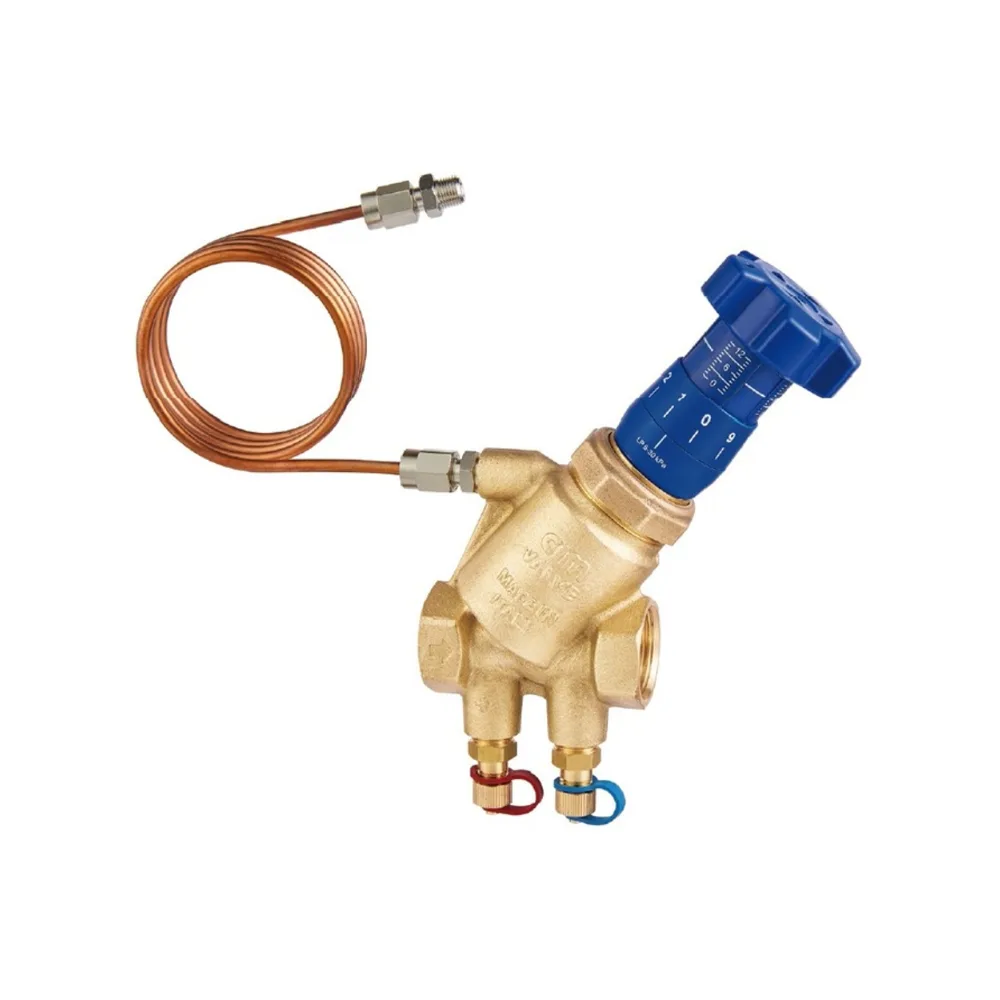

Automatic differential pressure control valve
CODE: 718
| DN | Flow [l/h] | Netto price (EUR): | Availability |
|---|---|---|---|
| 1/2" (LP) | 75÷600 | 270,93 | on order |
| 1/2" (HP) | 150÷1100 | 270,93 | on order |
| 3/4" (LP) | 100÷1250 | 278,60 | on order |
| 3/4" (HP) | 150÷2000 | 278,60 | on order |
| 1" (LP) | 500÷2500 | 293,00 | on order |
| 1" (HP) | 700÷2500 | 293,00 | on order |
- Flexible adjustment and setting of the required differential pressure using a knob.
- Differential pressure measurement via measuring ports on the valve.
- Reduction of acoustic noise when the installation is in overpressure conditions.
- Reducing the costs of balancing the installation, increasing energy savings, increasing the comfort of use.
- Easy flushing of the installation
- Reduced installation due to the compact design of the valve and the lack of requirements for straight pipe sections at the connection to obtain linear flow.
MAIN FEATURES:
Nominal pressure= 2.5 MPa
Temperature range= -10°C ÷ +120°C
LP model (Low Pressure): differential pressure range: 5 ÷ 30 kPa
HP model (High Pressure): differential pressure range: 20 ÷ 60 kPa
Working medium: water, glycol and other non-aggressive liquids
