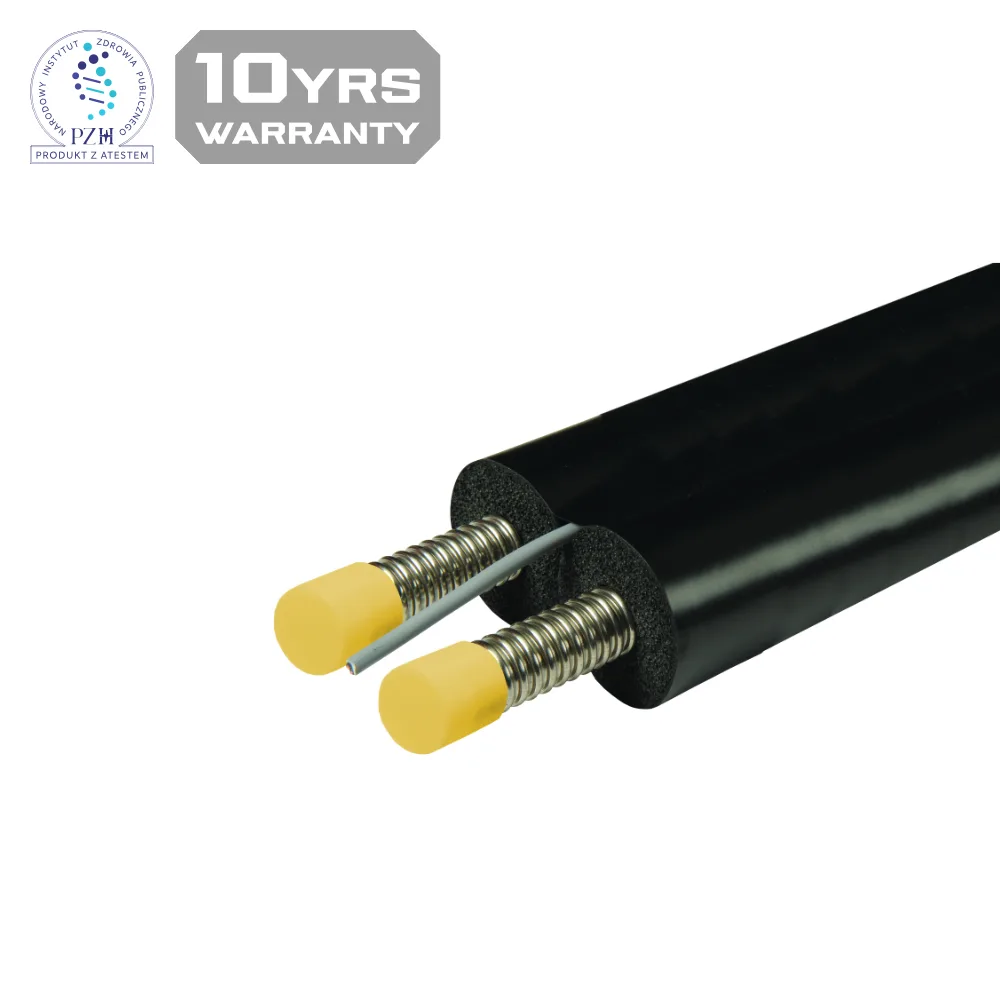

Corrugated and flexible, double connection pipe made of AISI 316L stainless steel, insulated with foamed rubber and PVC coating. Equiped with a control cable made of copper with silicone insulation. Thanks to the insulation and coating this solar panel connection hose is resistant to UV radiation and it is protected against potential damage caused by birds.
2in1 insulated corrugated flexible pipe Flexo-Tube in PVC coating – for solar installations
CODE: FP02-PVC2
| DN | Coil length [m] | Netto price (EUR): | Availability |
|---|---|---|---|
| 12 mm | 25 or 50 | 26,58 | on order |
| 16 mm | 25 or 50 | 26,21 | standard |
| 20 mm | 25 or 50 | 38,16 | on order |
| 25 mm | 25 or 50 | 50,93 | on order |
To download:
The prices given above refer to the net price for 1 m of pipe.
Conform EN ISO 10380 standard
Made in the EU
10 years warranty
PZH certified for potable water
Each coil of pipe is equipped with 4 connection sets (nut + ring + gasket)
MAIN FEATURES:
Pmax = 1.6 MPa (DN12), Pmax = 1.0 MPa (DN16, DN20), Pmax = 0, 6 MPa (DN25)
Temperature range= -40°C ÷ +150°C
Insulation wallthickness 13 mm
λ – 0.038 W/mK
Control cable – 2.30×4.70mm – copper in silicone insulation
